Boîtier de direction à servomoteur Yahboom SG90
Vendeur : Yahboom
SKU : 6000300116
Prix régulier
$3.80 USD
Need help with choosing the right product?
Click here to reach out to one of our experts.
- 【Compact and Lightweight Design】 The micro-sized form factor makes the SG90 suitable for projects where installation space and weight matter. Integrate it into small robotic mechanisms, sensor mounts, steering systems, and other compact moving structures.
- 【Programmable Angular Movement】The servo uses PWM control signals to adjust its output position. Developers can program specific angles to create controlled movements for robotic joints, sensor scanning, and interactive mechanisms.
- 【Programmable Angular Movement】 The servo uses PWM control signals to adjust its output position. Developers can program specific angles to create controlled movements for robotic joints, sensor scanning, and interactive mechanisms.
- 【Flexible Integration】 With three connections for power, ground, and signal, the SG90 can be integrated into compatible development platforms, including Arduino, Raspberry Pi, STM32, and other microcontroller-based systems.
- 【Explore More Robotics Possibilities】 From beginner electronics experiments to embedded system prototyping, the Yahboom SG90 micro servo helps makers turn control code into physical movement. It is suitable for educational projects, hobby robotics, smart car development, and small mechanical assemblies.

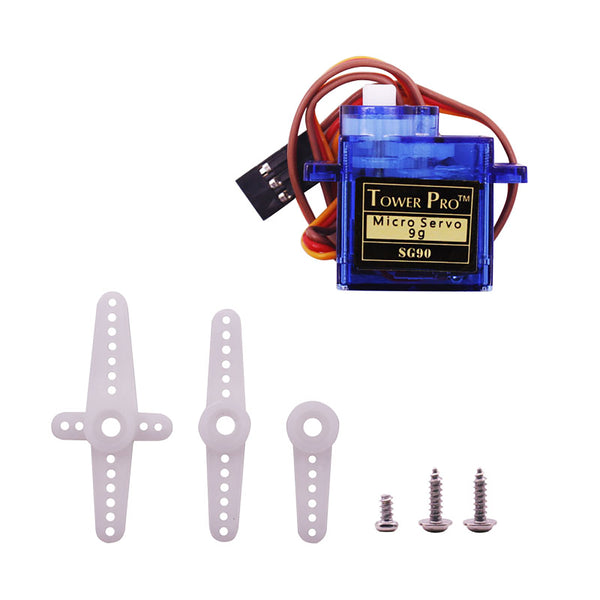

Ces servos possèdent trois broches : VCC, GND, IO. Léger, de petite taille.
Ce sont des servomoteurs à couple élevé qui peuvent pivoter à 180 degrés. Vous pouvez entrer un signal d'impulsion pour contrôler l'angle de rotation par programmation. Les utilisateurs peuvent l'étendre au bricolage électronique, aux voitures intelligentes, aux robots, aux bras robotisés, etc.
Liste de colisage
| Item | Specification |
|---|---|
| Lock rotor torque | 1.3kgf.cm (4.8v) |
| Operating Voltage | 4.8V-6V |
| No load current | 90mA(4.8V)/80mA(4.8V)/150mA(4.8V) |
| No load speed | 0.13sec/60°(4.8V)/0.14sec/60°(4.8V)/ 0.13sec/60°(4.8V) |
| Weight | 9±0.5g/10±0.5g/13.5±0.5g |
| Size | 32.5*23*12mm |
| Locked rotor current | 750mA(4.8V)/650mA(4.8V)/700mA(4.8V） |
| Control method | PWM pulse width control |
| PWM pulse width range | 500~2500us, corresponding to 0~180° |
