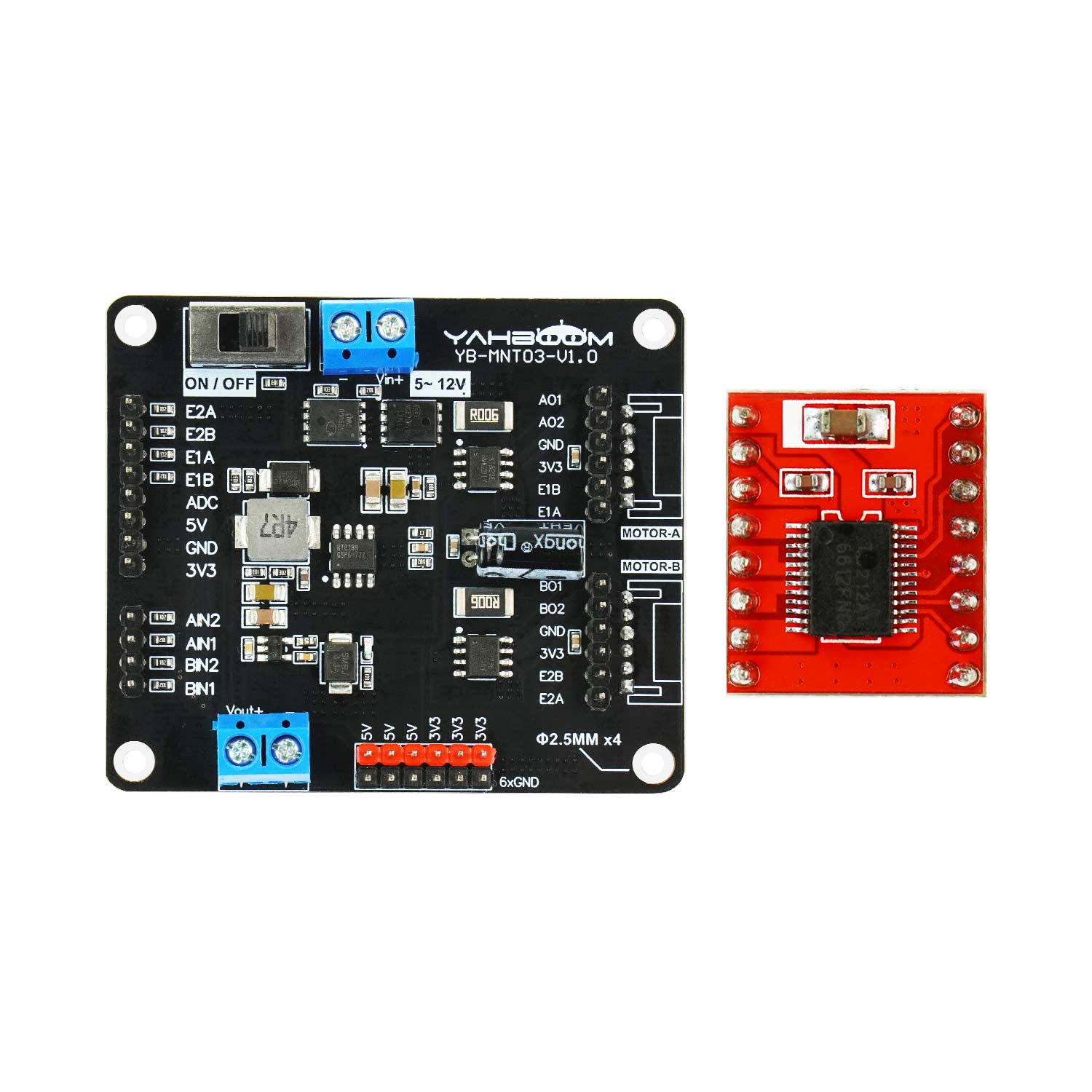

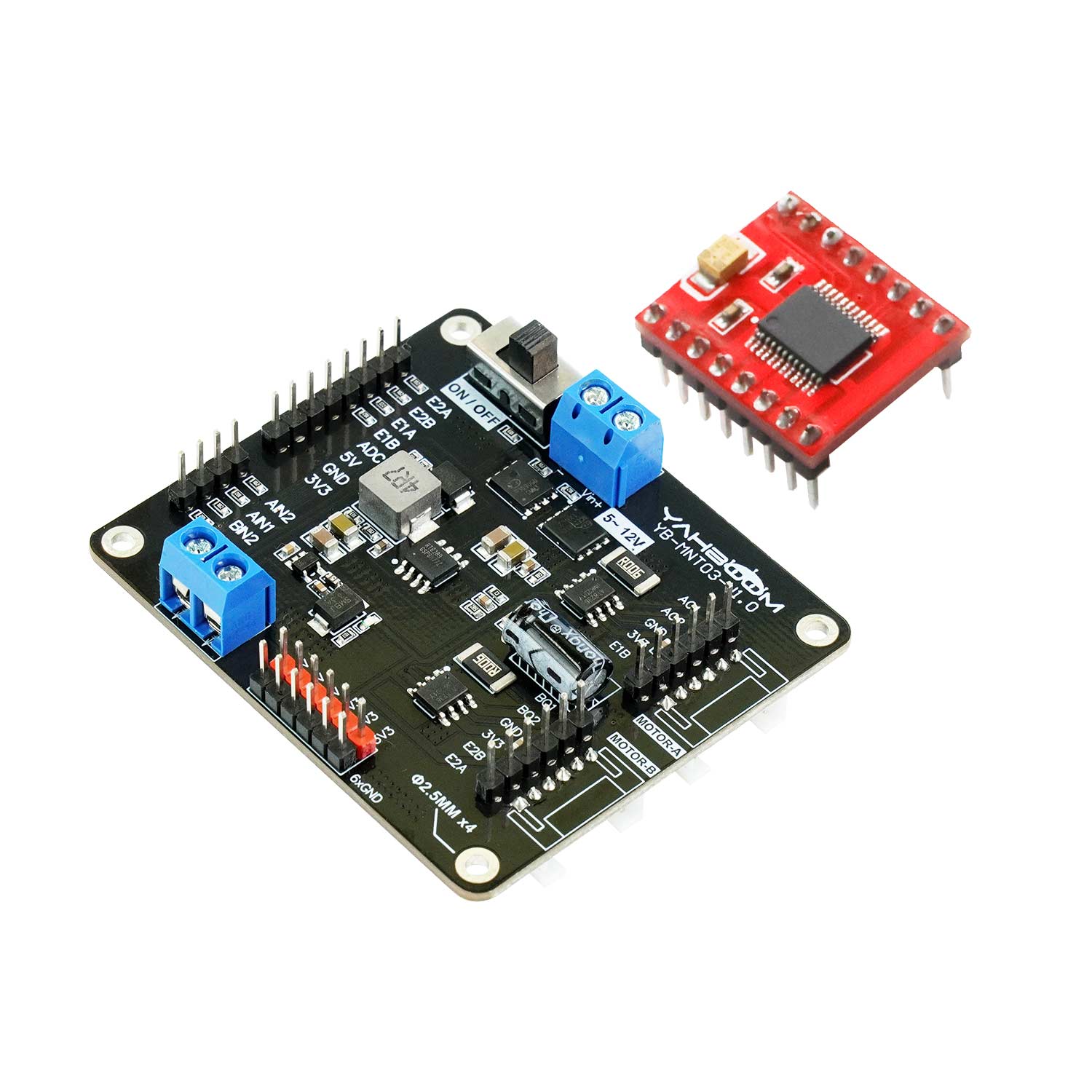

Módulo de accionamiento de motor de 2 canales (AT8236/TB6612FNG)

2-Channel Motor Drive Module(support 5-12V power supply)

Módulo de accionamiento de motor de 2 canales (AT8236/TB6612FNG)

Vendedor: Yahboom

SKU: 6000300121

Versión: TB6612 Lite

TB6612 Lite

Estándar AT8236

Cable estándar AT8236 + cable de alimentación

AT8236 Estándar*2 + Cable de alimentación*2

En stock, listo para enviar

Need help with choosing the right product?

Click here to reach out to one of our experts.

Este módulo de accionamiento de motor de dos canales está diseñado en base al chip AT8236, que puede accionar motores de 2 canales con codificador Hall al mismo tiempo. Admite una entrada de alimentación de voltaje de 5-12 V y tiene protección de conexión anti-reversa de entrada. Al mismo tiempo, tiene su propio circuito estabilizador de voltaje, que admite una corriente alta de 5 V/3 A o una salida de 3,3 V/500 mA para la fuente de alimentación de la placa principal. La corriente de accionamiento nominal del motor de circuito único es de 3,6 A y la corriente pico máxima puede alcanzar los 6 A. Posee protección contra sobrecorriente, protección contra cortocircuitos, bloqueo por subtensión, circuito de protección contra sobretemperatura, etc. El circuito de detección de voltaje VM integrado puede leer el voltaje de la fuente de alimentación en tiempo real. Al mismo tiempo, admite la fuente de alimentación en cascada entre múltiples módulos para realizar 2WD/4WD y otros vehículos inteligentes.

Características

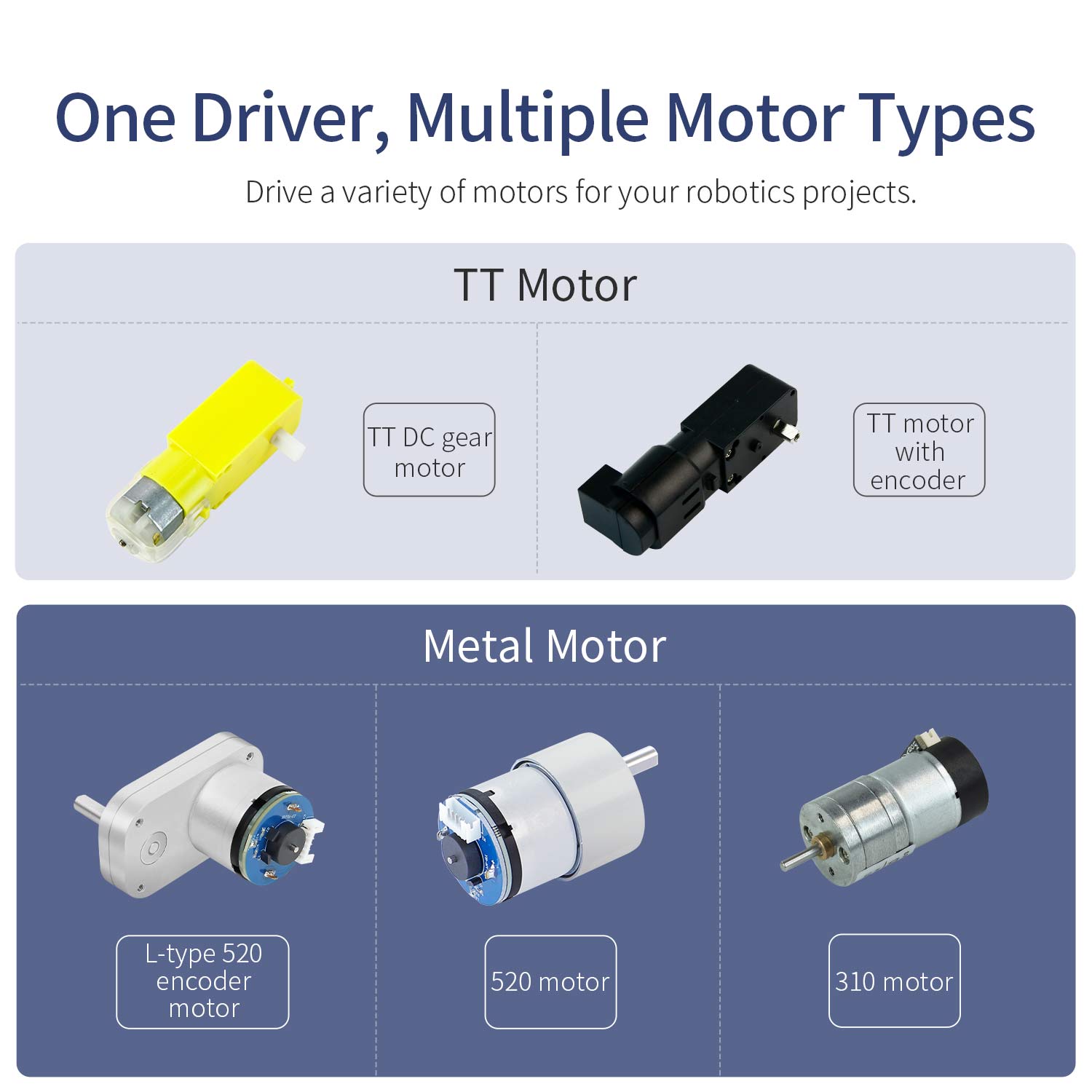

Chip controlador AT8236 incorporado, puede impulsar un motor de 2 canales (motor de CC TT, motor con codificador, motor 520, motor 310).
Adopte un diseño de circuito profesional (protección de conexión anti-inversa, circuito estabilizador de voltaje, circuito de detección de voltaje).
La interfaz de alimentación (KF301-2P/espaciado 5,08 MM/tipo vertical) admite entrada y salida, y puede realizar la conexión en cascada entre módulos.
La posición del orificio del tornillo de la placa de expansión corresponde a la de Raspberry Pione en uno y es aplicable a una variedad de diferentes placas de desarrollo y proyectos experimentales.

Lista de envíos

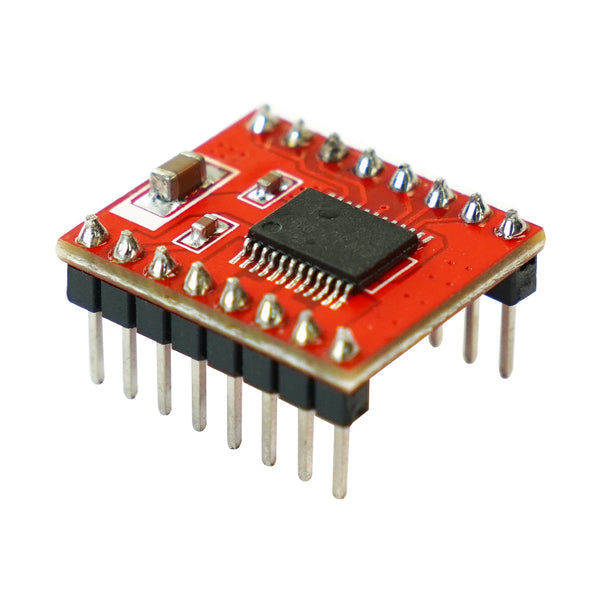

TB6612 Lite

AT8236 Lite

Estándar AT8236

Cable estándar AT8236 + cable de alimentación

AT8236 Estándar*2 + Cable de alimentación*2

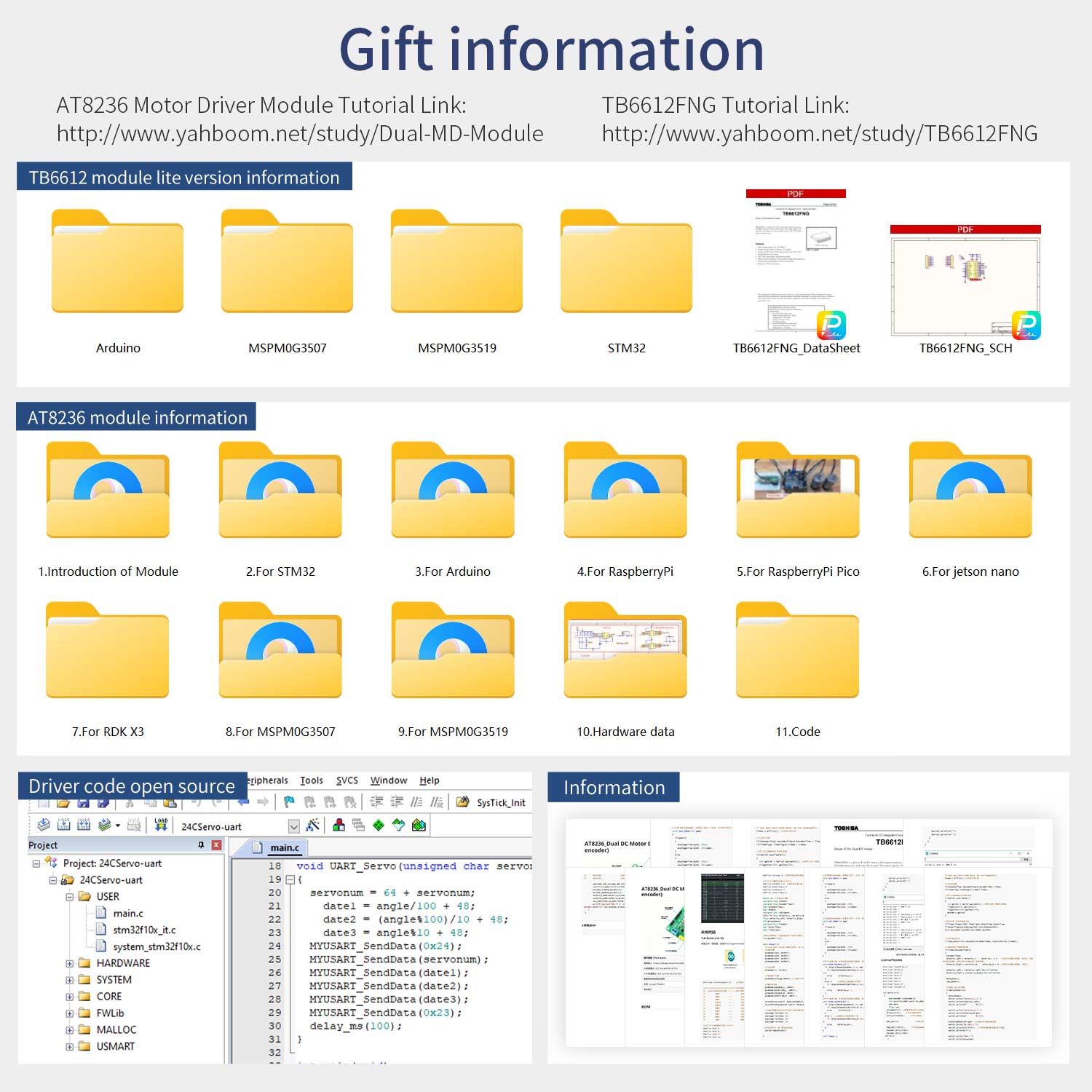

Enlace del tutorial

Módulo de accionamiento del motor AT8236 de Yahboom

Módulo de accionamiento del motor Yahboom TB6612
